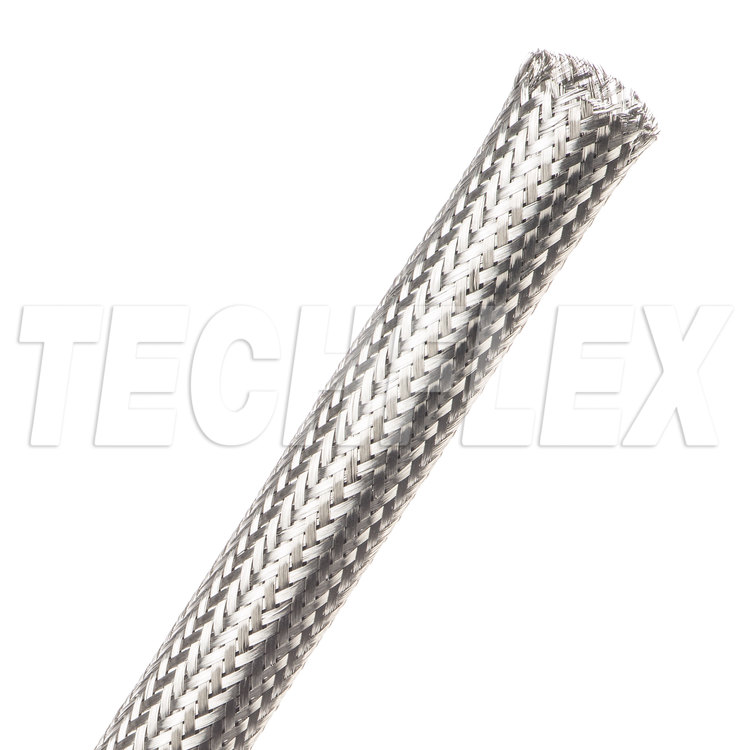

Stainless Steel XC expandable braided sleeving Techflex

STAINLESS STEEL XC (SS) Maximise protection by incorporating STAINLESS STEEL from wear and blowout. It also looks great in any application and is as strong as steel

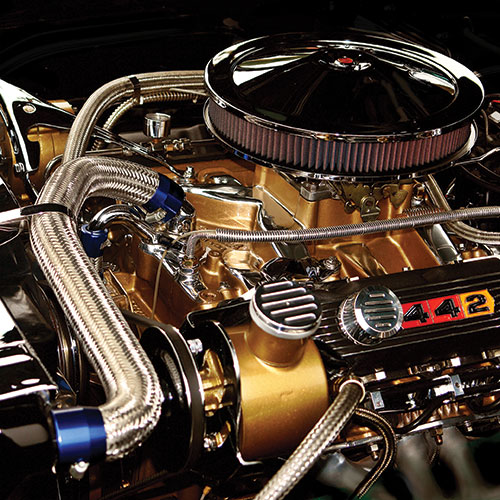

The STAINLESS STEEL sleeve allows users to take any stock or custom hose, slip a length of FLEXO STAINLESS  sleeve over, hide the cut ends under clamps and achieve the same look and protection as other high priced overbraided hoses at a fraction of the cost.

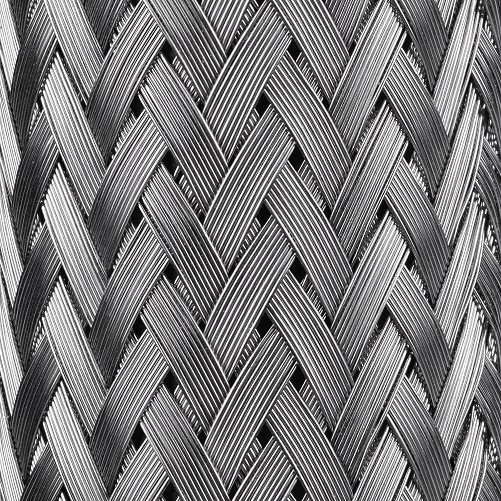

STAINLESS STEEL XC is a new ectra coverage product providing fuller coverage and results in a continuous stainless steel shine

• Vitually Indestructible 304 Stainless Steel
• Will not Disclour or Rust
• Easy to Install
• Cuts with Shears or Serrated Scissors
• Improves Burst Strength of Hoses
• Resists Abrasion, Chemicals and UV

Specifications - pdf (ft, inch's)

Standard Colour: Silver

Nominal Size mm	Part #	Wall Thickness mm	Expansion Range		Bulk Spool m	Mini Spool m
			Min mm	Max mm
6	SSL0.25	0.33	5	10	75	30	PRICE AND AVAILABILITY ON APPLICATION CONTACT US
10	SSL0.38	0.33	6	16	75	30
13	SSL0.50	0.33	10	19	30	15
19	SSL0.75	0.33	13	31	30	15
25	SSL1.00	0.33	16	33	30	15
32	SSL1.25	0.33	19	44	30	15
38	SSL1.50	0.33	25	54	30	15
