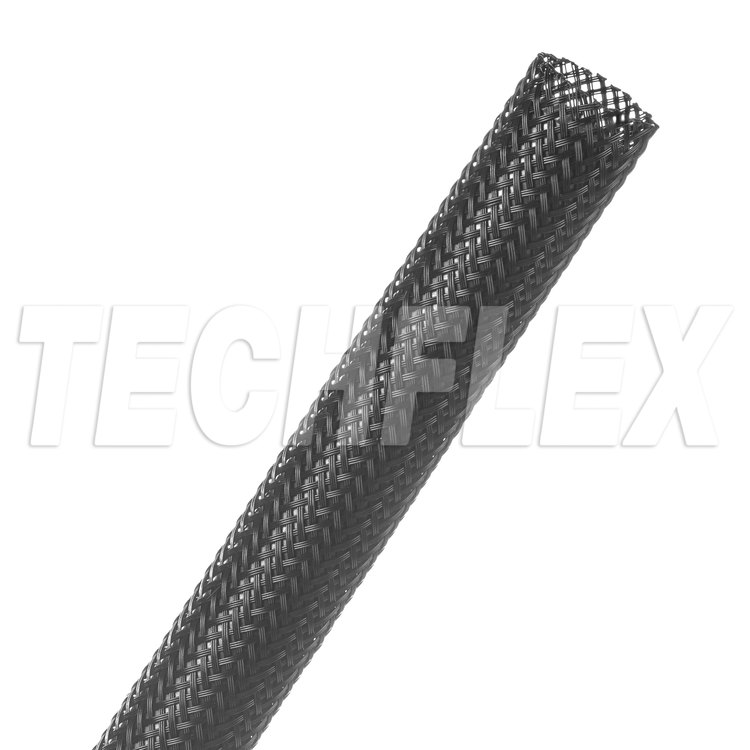

Flexo Conductive expandable braided sleeving Techflex

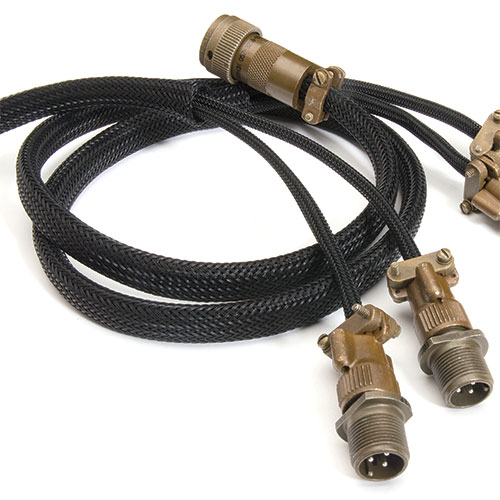

    FLEXO CONDUCTIVE (CN) is braided from 11 mil carbonised Nylon monofilament yarn. FLEXO CONDUCTIVE is designed to protect sensitive wiring from abrasion while shielding from high frequency noise. Many successful applications have utilised this sleeving for maintaining clean video signals, interference filtering in pro sound environments and RF filtering on power cables and outputs. FLEXO CONDUCTIVE is also useful in static sensitive environments.
    FLEXO CONDUCTIVE utilises a patented carbonisation process which infuses our braided sleeving with a microscopic carbon compound that is virtually indistinguishable from the base material.

    • EMI, RFI Protection
    • ESD Management Solution
    • Easy to install
    • Expands up to 150%
    • Halogen Free
    • Cuts and abrasion resistant

    Specifications - pdf (ft, inch's)

    Standard Colour:
    Black

    Nominal

    Part #

     Expansion  Range

    Bulk
    Spool

     Mini
    Spool

    GO TO CART BY HOVERING OVER THE PRICE & CLICK (Price $NZ/m excls GST)

    Size mm



    Min
     mm

     Max
    mm

    (m)

    (m)

    Price per M
    Cut to Length

    3

    CNN0.13

    3

    6

    300

    65

    BULK PRICE AND AVAILABILITY ON APPLICATION

    CONTACT US

    6

    CNN0.25

    3

    11

    300

     60

    $21.65

    10

    CNN0.38

    5

    16

    150

     38

    13

    CNN0.50

    7

    19

    150

     30

     16

    CNN0.63

     10

    25

     150

     30

     19

    CNN0.75

     13

     32

     75

     22

     25

    CNN1.00

     16

     41

     75

     20

     32

    CNN1.25

     19

     44

     75

     15

     38

    CNN1.50

     25

     63

     60

     12























    Flexible Technologies Limited - TECHFLEX NZ, are Techflex expandable braided sleeving distributors throughout New Zealand, Australia, the Pacific Region and other Worldwide locations
