Flexo NX fireproof braided sleeving Techflex

FLEXO NX

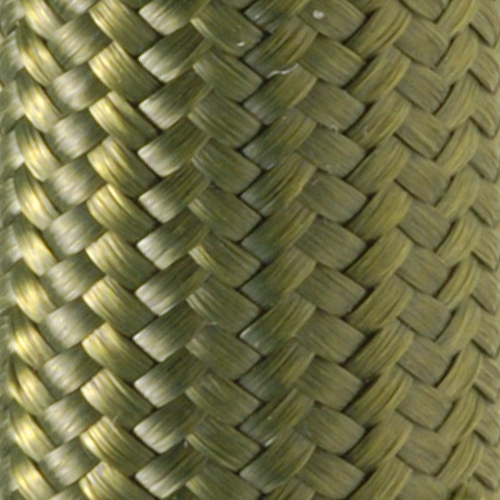

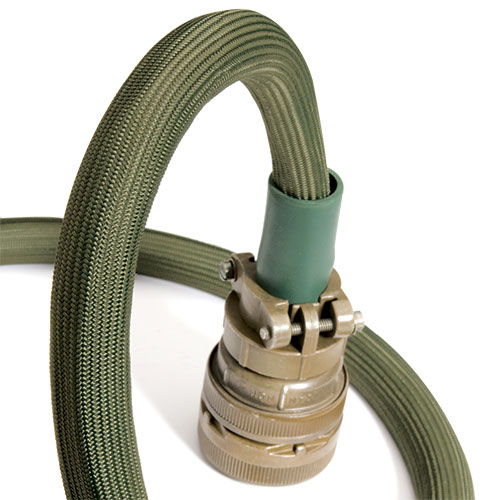

FLEXO NX (NX) (Formerly known as NOMEX) Sleeving will provide protection for wires, hoses and cables that woven NOMEX clothing and protective gear, used for years by race car drivers, municipal fire departments and oil rig personnel to provide that etra level of comfort and protection from the dangers that come with working in and around intense flame and heat.

Nomex will protect your application in temperatures up to 350C. NOMEX is unaffected by short term exposure to most acids, bases, solvents and common engineering chemicals. Despite the soft touch and smooth appearance associated with woven aramid fibres, NX is incredibly strong, with a tensile strength of 90,000psi.

.



FEATURES

Soft, Pliable & Strong

ESD Management Solution

Cuts Easily with Scissors

Resists Gasoline and Engine Chemicals

Halogen Free

Cuts and Abrasion Resistant




Overexpanded



Pto 1

Pto 2

Pto 4

Add To Cart - select the size and length from the table below
Standard Colour: Green

Nominal
Diameter
Part #  Expansion Range Bulk Spool  Mini Spool Price per m (NZ$)  ADD TO CART
mm   Min. mm  Max. mm m m BULK PRICE AND AVAILABILITY ON APPLICATION
3 NXN0.13 2 6 30 7.5  $10.20 / m

ADD TO CART
NXN0.13GN
(3mm)

6 NXN0.25 3 8 30 7.5 $25.65 / m

ADD TO CART
NXN0.25GN
(6mm)

8 NXN0.31 6 11 30 7.5   Contact Us
10 NXN0.38 7 13 30 7.5   Contact Us
13 NXN0.50  8 16 30 7.5  $42.20 / m

ADD TO CART
NXN0.50GN
(13mm)

16 NXN0.63  11 22  30 7.5   Contact Us
19 NXN0.75  14 25  30 7.5 $92.50 / m

ADD TO CART
NXN0.75GN
(19mm)

 25 NXN1.00   19 28  30 7.5 $110.45 / m

ADD TO CART
NXN1.00GN
(25mm)

 32 NXN1.25  25  51  30 7.5 $138.10 / m

ADD TO CART
NXN1.25GN
(32mm)

 38 NXN1.50   22  42  30 7.5   Contact Us
 44 NXN1.75  44  47 30 7.5   Contact Us
