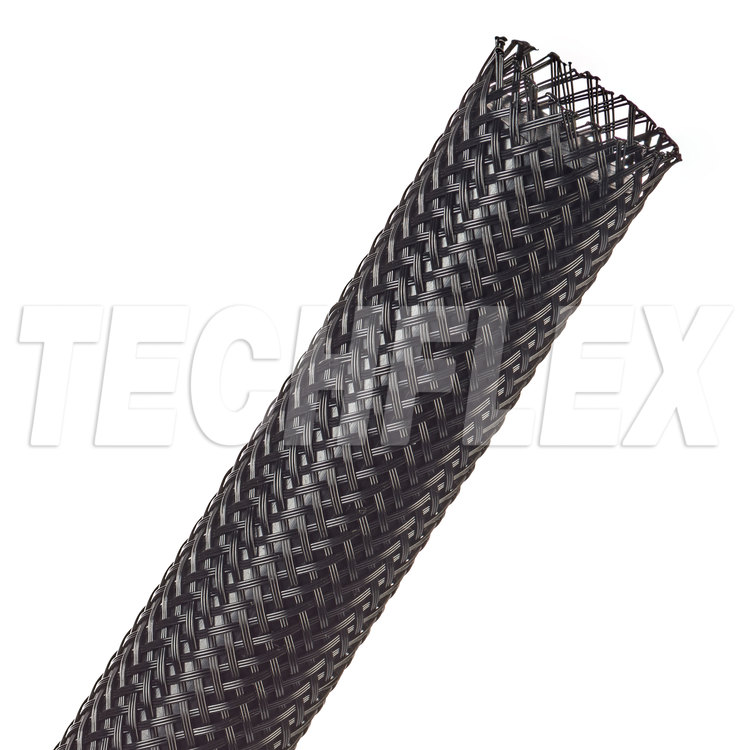

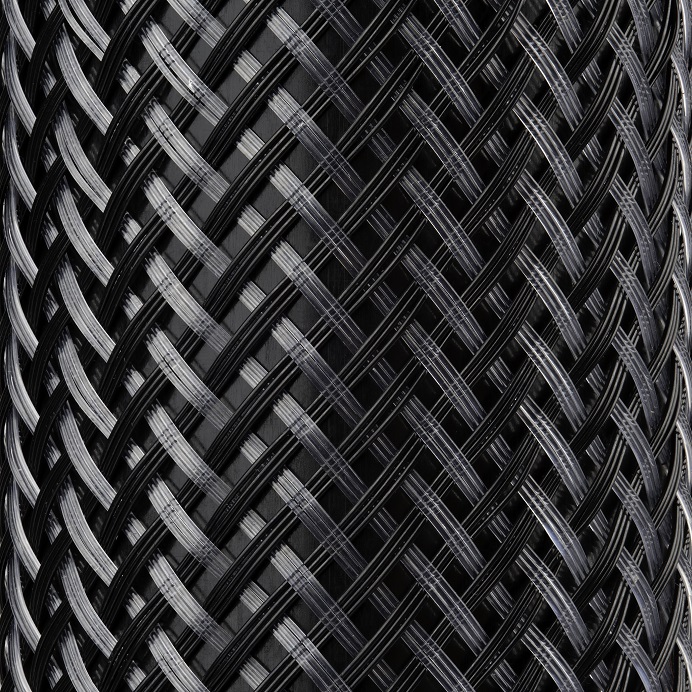

Heavy Wall expandable braided sleeve

HEAVY WALL

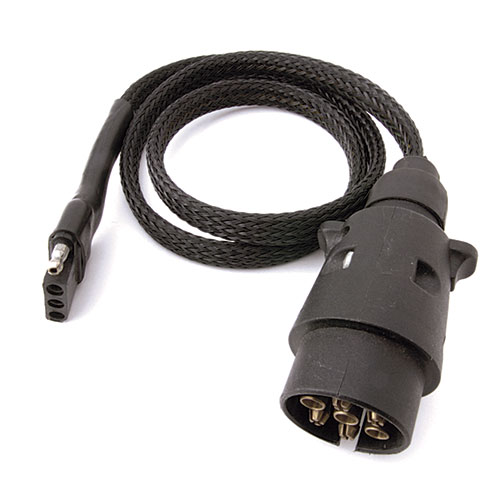

HEAVY WALL is used when your application calls for more protection than the standard FLEXO PET 10 mil product range. HEAVY WALL'S 15 mil is commonly used in industrial and marine applications where extreme abrasion protection is critical. The durability of HW makes it ideal for protecting hoses and cables that have to withstand constant contact with rough and abrasive surfaces.HW is the perfect solution for use on hoses, cables and chains to protect painted or laminated surfaces from scuffing and wear.

FEATURES

General purpose Expandable Braided Sleeving

Extreme Cut and Abrasion Resistant

UV Resistant, Resists gasoline, Engine Chemicals, Cleaning Chemicals and Salt water

Halogen Free.

FMVSS 302 and FAR 25 approved




SPECIFICATIONS



Overexpanded



Pto 1
Pto 2
Pto 4


Add To Cart - select the size and length from the table below

Standard Colour: Black (BK)  (Other Colours available on request - see specifications for details)

SELECT THE SIZE AND ADD TO THE CART BY  CLICKING THE GREEN CELL IN THE SAME ROW
(Price $NZ/m excls GST)
Nominal Diameter Part # Expansion Range Bulk Spool Quantity breaks

Prices per m ($NZ) ADD TO CART

mm   Min. mm  Max. mm (m) m
9 HWN0.38 5 19 150 Price for <38
Price for   39+
Price for   76+
Price for 150+
$5.30 / m
$3.95 / m
$3.55 / m
$3.15 / m

ADD TO CART
HWN0.38BK
(9mm)

16 HWN0.63 10 22 76 Price for <19
Price for   20+
Price for   38+
Price for   76+
$7.95 / m
$5.95 / m
$5.35 / m
$4.75 / m

ADD TO CART
HWN0.63BK
(16mm)

25 HWN1.00 12 38 76 Price for <19
Price for   20+
Price for   38+

Price for   76+
$10.60 / m
$7.95 / m
$7.10 / m
$6.35 / m

ADD TO CART
HWN1.00BK
(25mm)

38 HWN1.50 19 50 76 Price for <19
Price for   20+
Price for   38+
Price for   76+
$13.25 / m
$9.95 / m
$8.70 / m
$7.95 / m

ADD TO CART
HWN1.50BK
(38mm)

50 HWN2.00 38 76 60 Price for <15
Price for   15+
Price for   30+
Price for   60+
$23.85 / m
$17.90 / m
$15.95 / m
$14.30 / m

ADD TO CART
HWN2.00BK
(50mm)

76 HWN3.00 50 102 30 Price for <7
Price for   7+
Price for   15+
Price for   30+
$29.15 / m
$21.85 / m
$19.50 / m
$17.50 / m

ADD TO CART
HWN3.00BK
(76mm)

102 HWN4.00 63 139 30 Price for <7
Price for   7+
Price for   15+
Price for   30+
$35.75 / m
$26.80 / m
$23.95 / m
$21.45 / m

ADD TO CART
HWN4.00BK
(102mm)
