Flexo PET flame retardant expandable braided sleeving Techflex

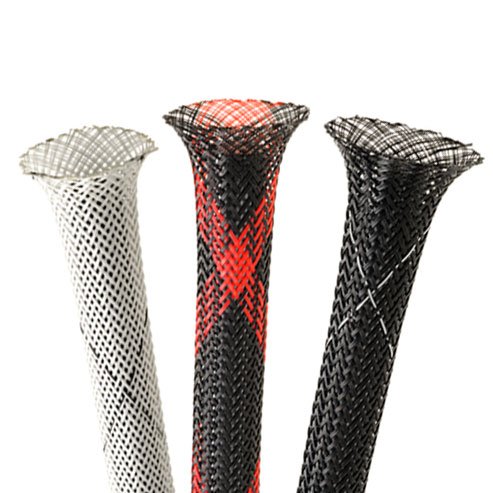

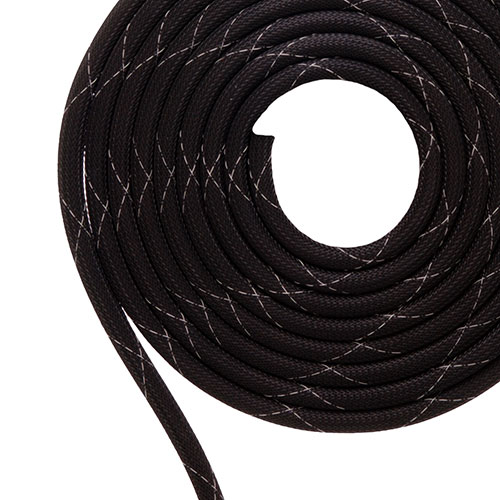

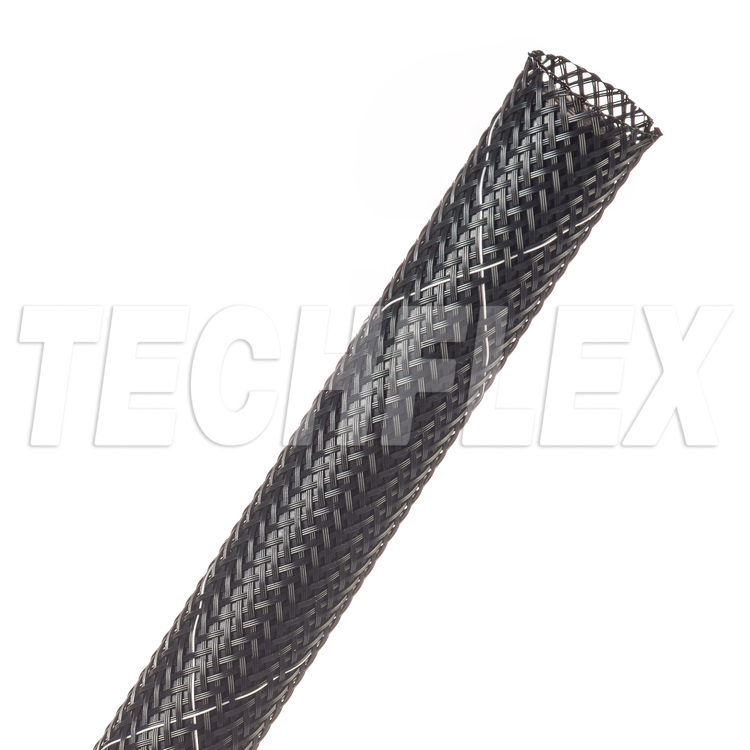

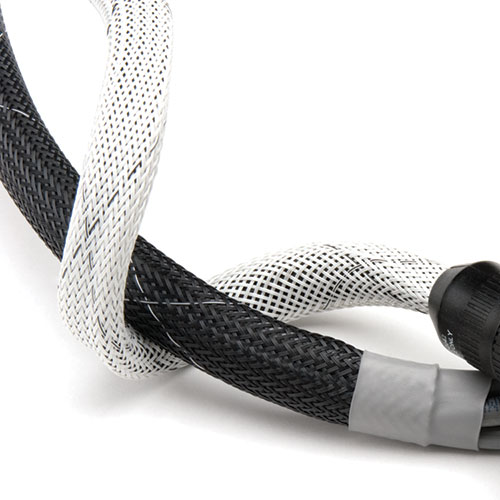

FLEXO PET FLAME RETARDANT

FLEXO PET FLAME RETARDANT is the perfect choice for electronic and high tech applications where flame retardance and durability are primary concerns. Easy installation makes FLEXO FR an efficient choice for long runs of wire or cable.
The addition of an organic combustion inhibitor to our standard polyethylene terapthalate gives FLEXO FR an Underwriters Lab and CSA flame resistance rating of VW-1.

FEATURES

VW-1 Approved

Mil-202, FAR 25, FMVSS 302

Resists Gasoline and Engine Chemicals

Economic and Easy to install

Expands up to 150%

Halogen Free

Cuts and Abrasion Resistant



SPECIFICATIONS

Download our Flexo PET Flame Retardant Specifications PDF


Overexpanded



Pto 1
Pto 2
Pto 4

Click thumbnails to view larger image

BUY NOW - select the size and length from the table below

Standard Colour: Black with white tracer

SELECT THE SIZE AND GO TO THE CART BY  CLICKING THE GREEN CELL IN THE SAME ROW
(Price $NZ/m excls GST)
Nominal
Diameter		 Part #  Expansion Range Bulk Spool  Mini Spool Price per m (NZ$)
Cut to Length		 BUY NOW
mm   Min. mm  Max. mm m m BULK PRICE AND AVAILABILITY ON APPLICATION
3 FRN0.13 3 6 300 65  $1.85 / m BUY FRN0.13BK (3mm)
6 FRN0.25 3 11 300 60 $3.15 / m BUY FRN0.25BK (6mm)
10 FRN0.38 5 13 150 38 $5.50 / m BUY FRN0.38BK (10mm)
13 FRN0.50 7 19 150 30 $6.55 / m BUY FRN0.50BK (13mm)
 19 FRN0.75  13  32  75 22 $8.65 / m BUY FRN0.75BK (19mm)
 25 FRN1.00   16  41  75 20 $11.30 / m BUY FRN1.00BK (25mm)
 32 FRN1.25  19  44  75 15 $14.15 / m BUY FRN1.25BK (32mm)
 38 FRN1.50   25  54  60 12 $14.55 / m BUY FRN1.50BK (38mm)
 44 FRN1.75  32  70  60 9 $17.85 / m BUY FRN1.75BK (44mm)
 50 FRN2.00   38  88  60  15 $22.30 / m BUY FRN2.00BK (50mm)
 64 FRN2.50  45  92  60  15 $30.20 / m BUY FRN2.50BK (64mm)
 76 FRN3.00   64  120  30  15  $32.00 / m BUY FRN3.00BK (76mm)



Flexible Technologies Limited - TECHFLEX NZ, are Techflex expandable braided sleeving distributors throughout New Zealand, Australia, the Pacific Region and other Worldwide locations
