Flexo Mounting System

FLEXO MOUNTING SYSTEM (FMS) has been created to attractively terminate applications with a secure mountable end. FMS has been engineered to work with FLEXO PET 38mm (PTN1.50) & 44mm (PTN1.75) or CLEAN CUT 38mm (CCP1.50)

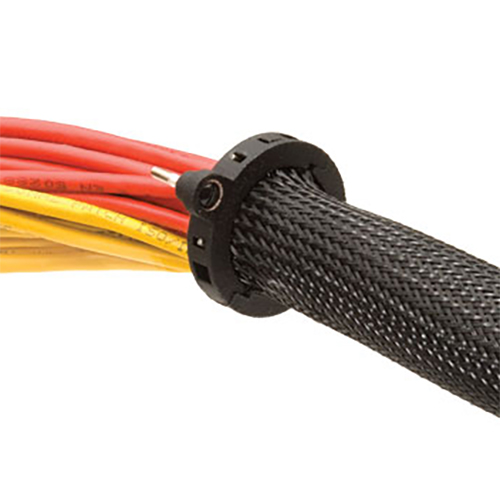

The installer friendly part clamps securely onto the sleeve without attaching to wiring for ideal strain relief. The two piece construction removes any limitation in size created by large connectors and preserve the sleeving expandability.

.



Overexpanded



Pto 1
Pto 2
Pto 4


Specifications (Feet & inches) & How to Install



FLEXO MOUNTING SYSTEM



SELECT THE SIZE AND ADD TO THE CART BY  CLICKING THE GREEN CELL IN THE SAME ROW
(Price $NZ/m excls GST)

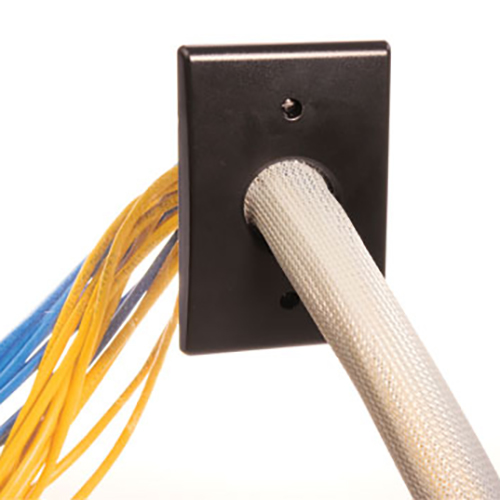

FMS1.50FK BLACK Finishing Pack (Black) 1 x Flange & 1 x Wallplate  $28.75

ADD TO CART
FMS1.50FK BK
FMS1.50FK WHITE Finishing Pack (White) 1 x Flange & 1 x Wallplate  $28.75

ADD TO CART
FMS1.50FK WH
FMS1.50FL Flange only (2 pc clip and ring) $9.40

ADD TO CART
FMS1.50FL





 SLEEVING

SELECT THE SIZE AND ADD TO THE CART BY  CLICKING THE GREEN CELL IN THE SAME ROW
(Price $NZ/m excls GST)
Nominal
Diameter		 Part #  Expansion Range

Bulk
Spool

 Quantity Breaks  Prices per m (NZ$)  ADD TO CART
mm   Min. mm  Max. mm m
 FLEXO PET
38 PTN1.50 25 64 60

Price for <15
Price for   15+
Price for   30+
Price for   60+

 $11.05 / m
$8.30 / m
$7.40 / m
$6.65 / m

ADD TO CART
PTN1.50
(38mm)
44 PTN1.75 32 69 60

Price for <15
Price for   15+
Price for   30+
Price for   60+

 $14.55 / m
$10.90/ m
$9.75 / m
$8.75 / m

ADD TO CART
PTN1.75
(44mm)
CLEAN CUT
38 CCP1.50BK 32 50 76

Price for <20
Price for   20+
Price for   38+
Price for   76+

 $13.50 / m
$10.15 / m
$9.05 / m
$8.10 / m

ADD TO CART
CCP1.50
(38mm)
