Flexo F6 flame retardant semi rigid wrappable split braided sleeve Techflex

FLEXO F6 FLAME RETARDANT

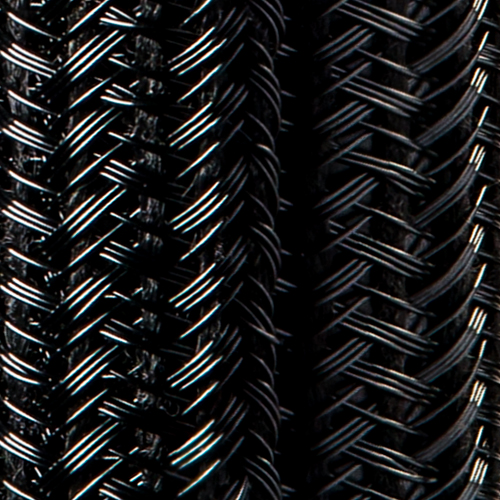

FLEXO F6 FR (F6F) Self- extinguishing F6F fully complies with UL standard VW-1. The addition of an organic flame inhibitor to the triaxially braided F6 split sleeving provides the perfect solution to a wide range of cable management needs.

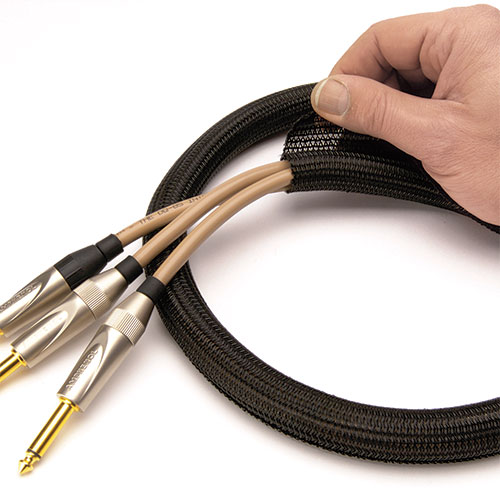

Easy slip over installation, complete access along the entire run, economy, durability and UL certified flame retardance makes F6F ideal when the goal is to manage wires and cables safely and effectively.



FEATURES

VW-1, FAR 25

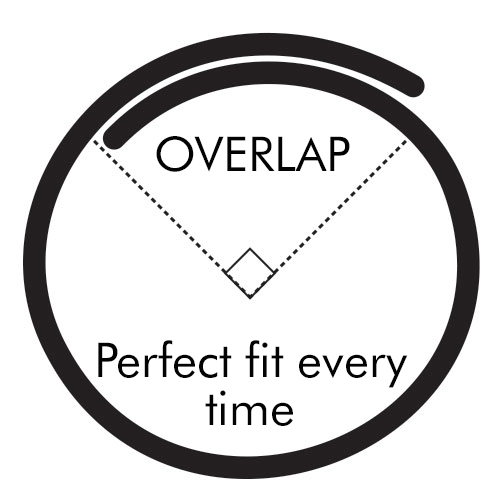

Wraparound Without fasteners



SPECIFICATIONS

Download our Flexo F6 Flame Retardant Specifications PDF



Overexpanded



Pto 1

Pto 2

Pto 4




Nominal
Diameter		 Part # Wall Thickness Bulk Spool  Mini Spool BULK PRICE AND AVAILABILITY ON APPLICATION
mm   mm m m
3 F6F0.13 0.61 120 30 CONTACT US
6 F6F0.25 0.64 60 30
10 F6F0.38 0.64 45 22
13 F6F0.50 0.64 45  22
 19 F6F0.75 0.64 30  15
 25 F6F1.00  0.97 30  15
 32 F6F1.25 0.97  22 7.5
 38 F6F1.50  0.97 22 7.5
 51 F6F2.00  0.97  15 7.5
