Silica expandable braided sleeving Techflex

SILICA SLEEVE

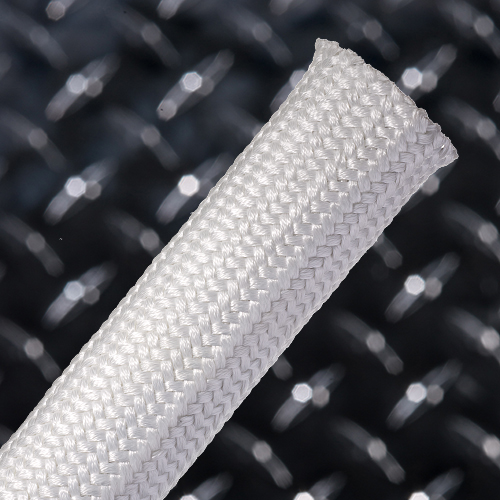

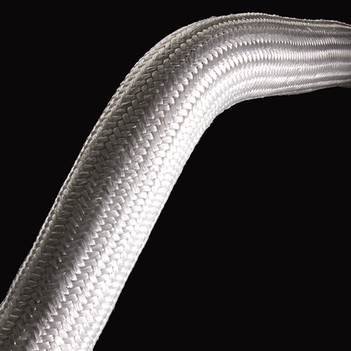

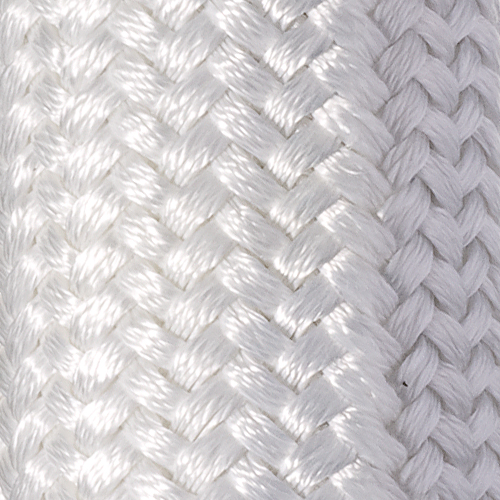

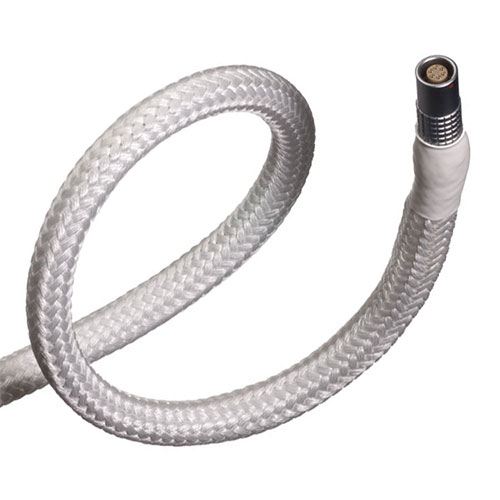

SILICA SLEEVE (SL) Densely woven SILICA SLEEVE is ideal for protection of delicate components and personnel from exposure to high temperature exhausts and pipes.
SILICA SLEEVE is braided into a strong and flexible sleeve from silica yarns. The thick 60 mil wall thickness provide enhanced thermal protection up to 982C.



FEATURES

60 mil Wall Thickness Provides Enhanced Thermal Insulation

High Temperature Resistance

Easy to install

Resists gasoline and Engine Chemicals and Engine Chemicals

Cuts and Abrasion Resistant



SPECIFICATIONS

Download our Silica Sleeve Specifications PDF



Overexpanded



Pto 1

Pto 2

Pto 4


BUY HERE - select the size and length from the table below
Standard Colour: Natural

Nominal
Diameter		 Part # Wall Thickness  Expansion Range Bulk Spool  Mini Spool Price per m (NZ$) Cut to Length BUY NOW
mm     Min. mm  Max. mm m m BULK PRICE AND AVAILABILITY ON APPLICATION
6 SLN0.25  1.5 6 13 30 15 $25.90 / m BUY SLN0.25NT (6mm)
13 SLN0.50  1.5 13 16 30  15 $51.85 / m BUY SLN0.50NT (13mm)
25 SLN1.00  1.5 19 29 30 15 $64.60 / m BUY SLN1.00NT (25mm)
38 SLN1.50  1.5 25 38 30 15 $92.50 / m BUY SLN1.50NT (38mm)
50 SLN2.00  1.5 32 55  30 7.5 $102.50 / m BUY SLN2.00NT (50mm)
76 SLN3.00  1.5 64  89 30 7.5 $137.40 / m CONTACT US
102 SLN4.00  1.5 89 114 30 7.5 $150.35 / m CONTACT US
128 SLN5.00 1.5 114 140 30 7.5 $170.95 / m BUY SLN5.00NT (128mm)
 152 SLN6.00  1.5 140 165 30 7.5 $191.60 / m CONTACT US



Flexible Technologies Limited - TECHFLEX NZ, are Techflex expandable braided sleeving distributors throughout New Zealand, Australia, the Pacific Region and other Worldwide locations
