Flexo PET braided sleeving Techflex

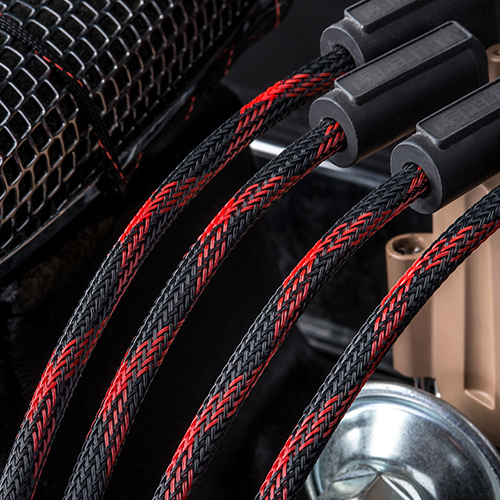

    FLEXO PET is used in electronics, automotive, marine and industrial wire and cable harnessing applications where cost efficiency and durability are critical. The unique braided construction and wide expandability allows for quick and easy installation over large connectors and long runs. Great for audio interconnects and cable covers.
    Made from 10 mil polyethylene terephthalate (PET) monofilament yarns, FLEXO PET can be found in applications ranging from small office/home office to high tech wire and cable harnesses.

    • General purpose Expandable Braided Sleeving
    • Cut and Abrasion Resistant
    • Expands up to 150% to slip over connectors
    • Resists gasoline, Engine Chemicals and Cleaning Chemicals
    • Halogen Free. FMVSS 302 and FAR 25 approved

    Specifications - pdf (ft, inch's)
    Standard Colour:
    Black (BK)  (Limited Colours available, others on request - see specifications for details)

    NOTE: FOR FLAME RETARDANT REQUIREMENTS GO TO: ADVANCED ENGINEERING - FLEXO PET FR

    Nominal

    Part #

    Expansion
    Range

    Bulk
    Spool

    GO TO CART BY HOVERING
    OVER THE PRICE & CLICK
    (Price $NZ/m excls GST)

    NOTE:

    For greater
    or repetitive quantities
    contact us


    Size mm



    Min.
    mm

     Max.
    mm

    (M)

    Quantity breaks and prices per metre



    BLACK

     COLOUR

    CURRENCIES*

    AUD
    EUR
    GBP
    JPY
    NZD
    USD

    Select at CART*

         Spool $/m   Cut to Length $/m
              304m   153 -
    303m
    77-
    152m
    < 76m Colour
    per m
    3 PTN0.13 2 6 304 $0.95



    $1.07 $1.19 $1.59 $1.75
    6 PTN0.25 3 11 304 $1.01



    $1.13 $1.27 $1.69  $1.86
              152m   77 -
    151m
    39 -
    76m
    < 38m  Colour
    per m
    9 PTN0.38 5 16 152 $1.75



    $1.96 $2.19 $2.92 $3.21





    12 PTN0.50 6 19 152 $2.38



    $2.66 $2.98 $3.97  $4.37
    16 PTN0.63 9 25 152 $3.01



    $3.36 $3.77 $5.02  $5.52


    76m



    39 -
    75m

    20 -
    38m

    < 19m

    Colour
    per m

    19 PTN0.75 12 32 76

    $3.49



    $3.90

    $4.37

    $5.82

    $6.40

    25 PTN1.00 16 40 76

    $4.14



    $4.62

    $5.18

    $6.90

    $7.59

    32 PTN1.25 19 44 76

    $4.77



    $5.33

    $5.96

    $7.95

    $8.75

            61m   30 -
    60m
    16 -
    29m
    < 15m Colour
    per m
    38 PTN1.50 25 54 61

    $6.04



    $6.74

    $7.55

    $10.06

    $11.07

    44 PTN1.75 32 69 61

    $7.94



    $8.87

    $9.93

    $13.24

    $14.56

    50 PTN2.00 38 88 61

    $11.13



    $12.43

    $13.91

    $18.55

    $20.41

    64 PTN2.50 44 112 61

    $14.30



    $15.97

    $17.88

    $23.84

    $26.22





    30m



    16 -
    29m

    6 -
    15m

    < 7m

    Colour
    per m


    76 PTN3.00 64 119 30

    $15.89



    $17.74

    $19.86

    $26.48

    $29.13
